PowerEx Charger-Analzyer US

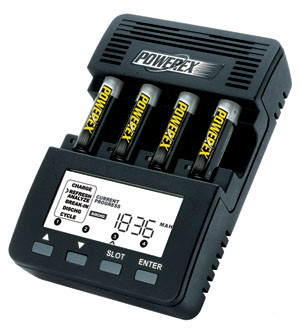

The PowerEx WizardOne Battery Charger & Analyzer is suitable for the casual consumer users, enthusiast and professionals. WizardOne is capable of charging, conditioning, analyzing, cycling, forming and discharging one to four AA or AAA batteries, all while digitally displaying the battery capacity and voltage. All four slots can be operated independently in different modes and settings.
Those seeing the unit for the first time will be struck by its large LCD screen, backlit by ultra-bright white LEDs. Measuring over 3.5" by 1.5," the display is more than three times larger than its closest competition and shows a wealth of information that is easy to read.
In addition to the standard charging, conditioning and discharging, the WizardOne charger-analyzer also offers two unusual operations modes. The Break-In mode allows the user to input the capacity of the battery and performs a "forming" charge designed to properly break-in new batteries. The Cycle mode allows user to charge and discharge batteries consecutively while storing the capacity for up to 15 cycles.
There are ten selectable charging and discharging current from 0.2A to 2.0A and 0.1A to 1.0A respectively. The charger also features four independent temperature sensors using PowerEx's latest temperature rise detection algorithm in addition to the usual peak temperature detection. It also armed with additional patented termination algorithms found in other PowerEx chargers. The unit can be operated in a basic and advanced mode. In the basic mode, user merely needs to insert the batteries with no further key press. The charger will select the appropriate settings automatically, making it suitable for the casual users.
Please see the Specifications tab below for additional information.
- Four independent slots for AA or AAA NiMH batteries
- Large backlit LCD
- Digitally displays battery capacity, voltage, current and time
- Special forming charge and cycling mode
- 30 selectable charging and discharging speed
